Sliding gates - Design Luna 100

Versions

100H

100V

The perfect mix of security & comfort

The Luna Design sliding gate is characterised by the use of robust, wide aluminium profiles, available in two designs:

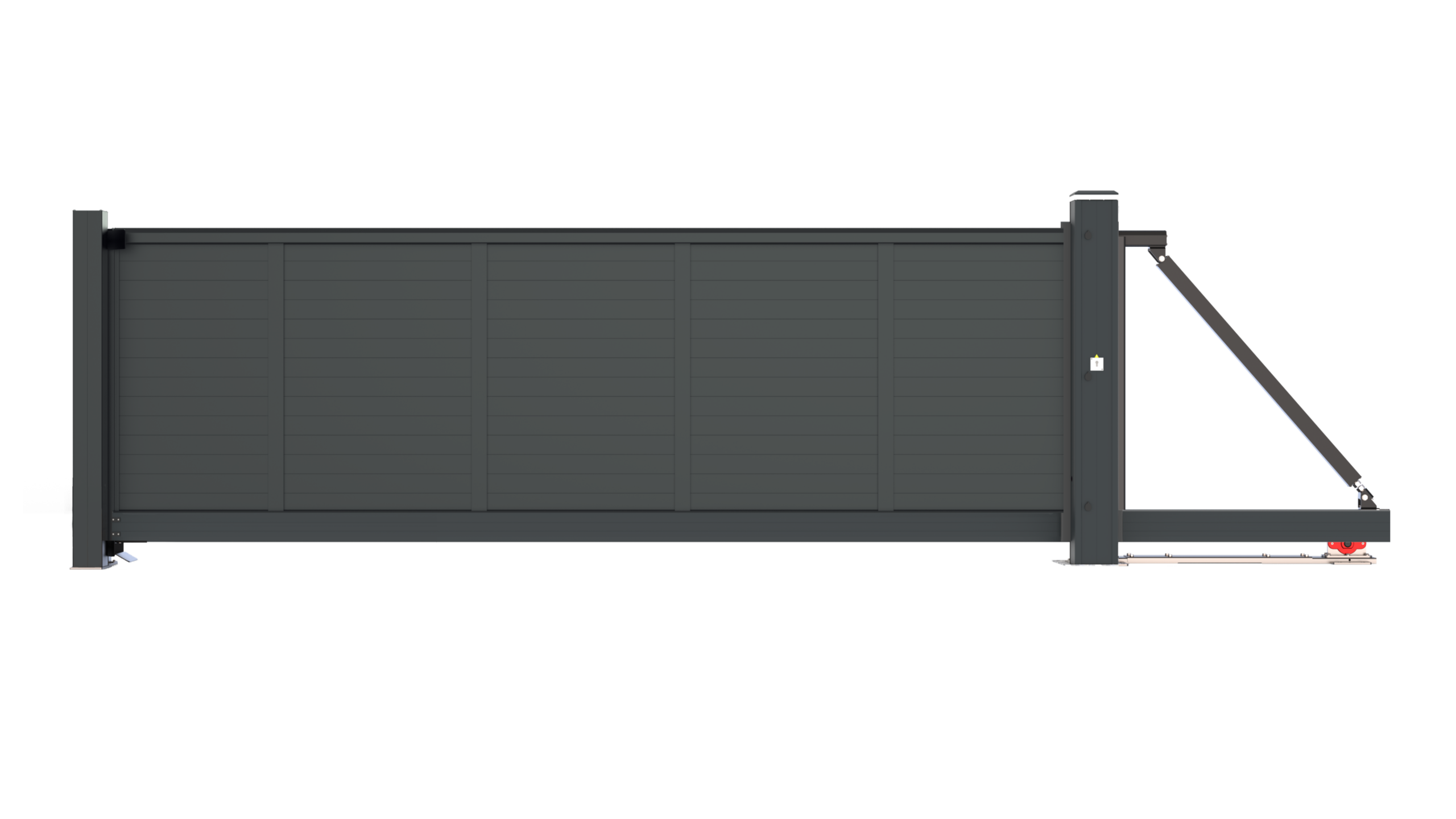

• Luna 100H: aluminium infill profile with dimension 100x25mm inserted horizontally into the gate wing.

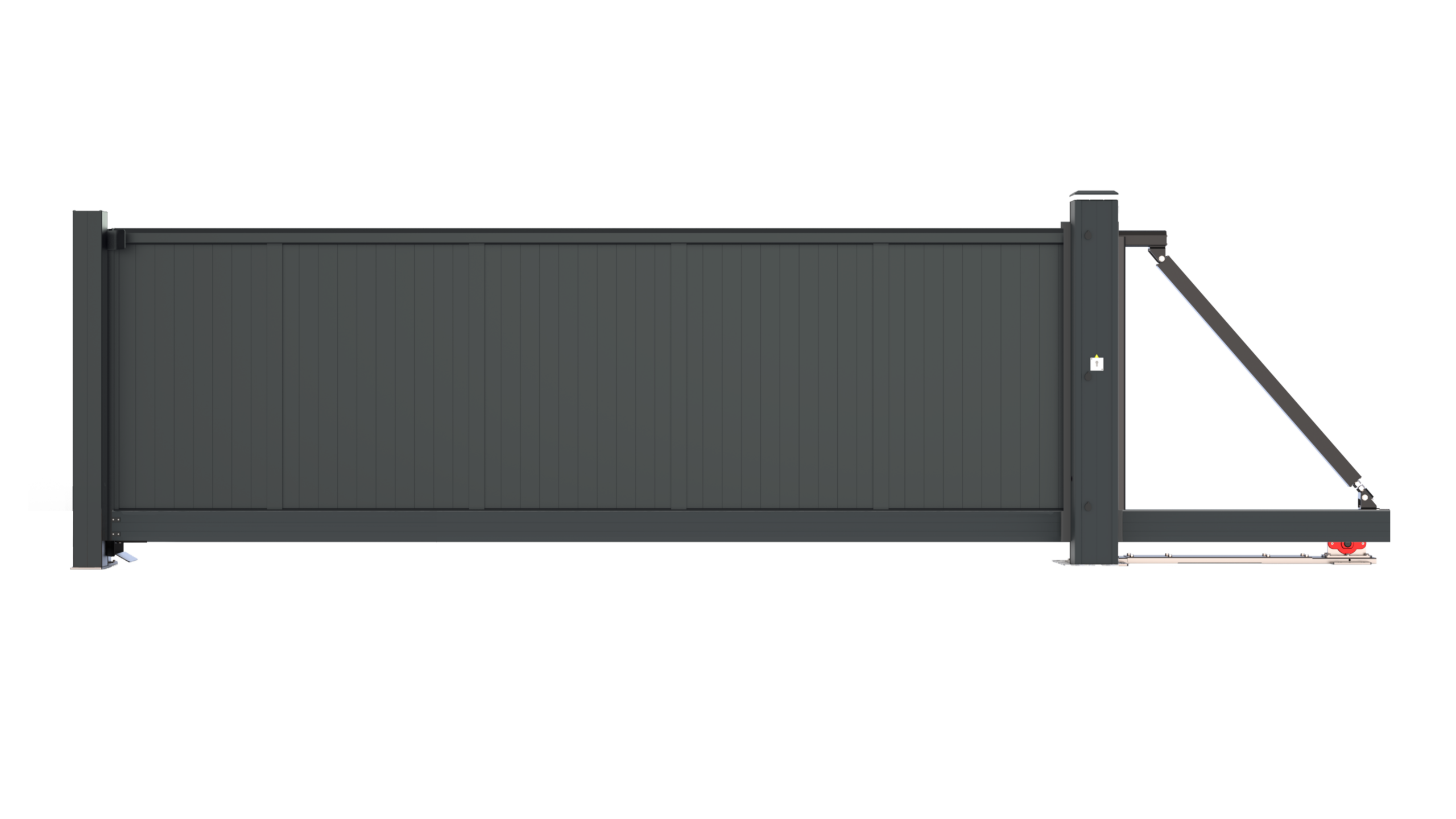

• Luna 100V: aluminium infill profile with dimension 100x25mm inserted vertically into the gate wing.

The aluminium profiles of the Luna 100 are connected with a tongue and groove connection, ensuring a perfectly closed system. The profiles have bevelled edges at the top and bottom, creating a v-shaped groove between the two profiles, also known as V-Match.

The Luna gates are standard provided with a textured coating in the colours Anthracite-grey (RAL 7016) or Jet-black (RAL 9005). The gate infill have been pre-treated with a high-quality SEASIDE pre-treatment technique:
the best corrosion protection for aluminium profiles!
As a result, the profiles have better resistance in aggressive environments
such as coastal areas, heavy industrial zones and urban areas.
The SEASIDE-coating protection offers many advantages:

  • Improved colour and gloss stability.
  • Increased scratch resistance.
  • Better UV resistance.
  • Longer weather resistance.

Technical data

Default heights:

1035, 1235, 1435, 1635, 1835, 2035 mm

RAL 7016 texture
RAL 9005 texture

Sliding gate

Width dimension (mm) between posts
3000
4000
5000
6000
7000

Sliding gate

Length gate wing (mm)
4600
5700
6700
8200
9200

Aluminium Guide-post Manual operated

150 x 150
150 x 150
150 x 150
150 x 150
150 x 150

Aluminium Guide-post Automated

250 x 180
250 x 180
250 x 180
250 x 180
250 x 180

Aluminium Stop-post

150 x 150

Aluminium C-profile lower beam

250 x 160

Aluminium Head style profile

100 x 80

Aluminium Between profile

80 x 60

Aluminium Top guide profile

140 x 75

The Luna design sliding gate is available in both single and “sliding towards each other” versions. Optionally is a fully integrated PLUG & PLAY automation available, which is mounted invisibly in the guide post.
